Chain tensioner

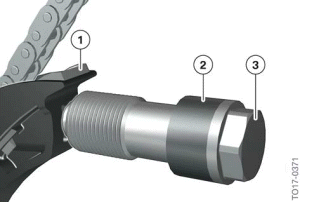

- Tensioning rail
- Sealing sleeve
- Chain tensioner with screw thread
Due to the cylinder head manufacturing process, the chain tensioner now has a sealing sleeve with a height of 12.5 mm instead of a sealing ring.
