BMW 3: Route guidance
Adaptive recuperation uses the data and calculations of the route-ahead
assistant. In this way,
adaptive recuperation can be used by the navigation system when route guidance
is both active and
not being used. When the route guidance is not active, the most likely route is
used for evaluation.
However, the stretch of road can be calculated more accurately, and therefore
more efficiently, when
the route guidance is active.
Decelerations

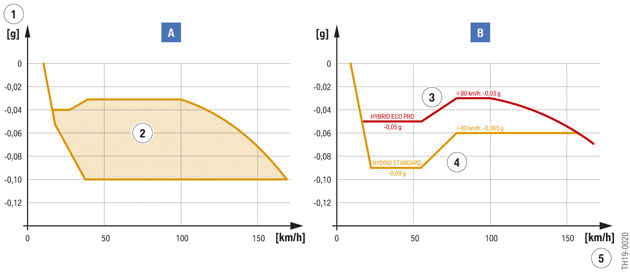

The following diagram shows the extent of the energy recovery with and
without adaptive
energy recovery depending on the speed. The brake lights are not activated
automatically during
recuperation.
.png)
G20 PHEV comparison of deceleration with and without adaptive recuperation
- Vehicle with adaptive energy recovery (example: G20 PHEV)
- Vehicle without adaptive energy recovery (example: G12 LCI PHEV)
- Deceleration by recuperation
- Control range of adaptive recuperation
- Control of recuperation in HYBRID ECO PRO driving mode
- Control of recuperation in HYBRID STANDARD driving mode
- Vehicle speed
To illustrate this: -0.1 g (-0.981 m/s2) corresponds to a speed reduction of
approximately 2 mph
(3.5 km/h) per hour.
Deceleration to a standstill does not happen since in the low speed range the
vehicle is driven via the
automatic transmission (creeping).
