BMW 3: Replacing the battery
1. Remove the integrated key from the vehicle
key.

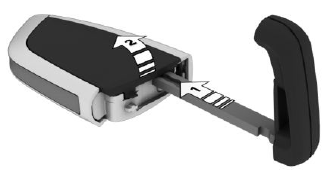

2. Place the integrated key underneath the battery
compartment cover, arrow 1, and lift the
cover with a lever movement of the
integrated key, arrow 2.
![Opening and closing](images/books/2859/index.53(1).png)

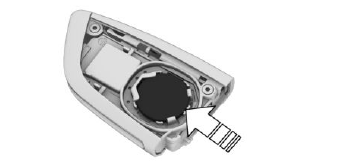

3. Push battery in the direction of the arrow using
a pointed object and lift it out.
![Opening and closing](images/books/2859/index.54(1).png)
4. Insert a type CR 2032 battery with the positive
side facing up.
5. Press the cover closed.
6. Push the integrated key into the vehicle key
until the integrated key engages.
Have old batteries disposed of by
a dealer's
service center or another qualified service center or repair shop or take them
to a
collection point.
Additional vehicle keys
Additional vehicle keys are available from a service
center or another qualified service center or
repair shop.
Loss of vehicle keys
A lost vehicle key can be blocked and replaced
by a dealer's service center or another qualified
service center or repair shop.
If the lost vehicle key has an assigned driver profile,
the connection to this vehicle key must be
deleted. A new vehicle key can then be assigned
to the driver profile.
