Installation locations and connections

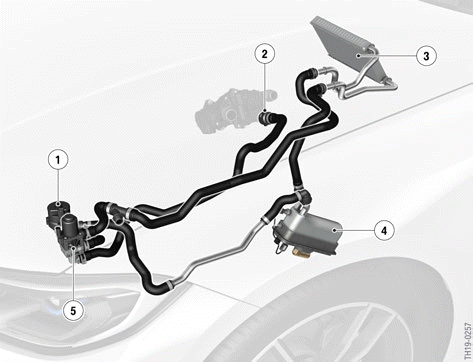

G20 PHEV, heater circuit

  1. Electric coolant pump
  2. Connection to the coolant circuit
  3. Heat exchanger for heating system
  4. Electrical heating
  5. Electrical changeover valve

Installation locations and connections

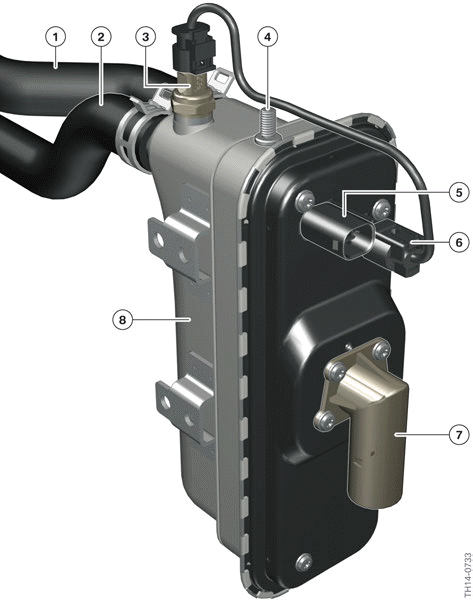

Connections at the electric heating

  1. Coolant feed line (from the electric coolant pump)
  2. Coolant feed line (to the heat exchanger for heating system)
  3. Coolant temperature sensor
  4. Equipotential bonding line connection
  5. Signal connector (low-voltage connector)
  6. Coolant temperature sensor connection
  7. High-voltage connector connection
  8. Housing
