BMW 3: Overview

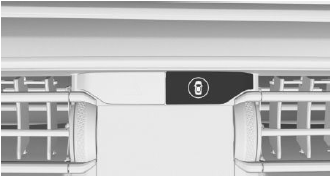

Button in the vehicle
.png)
.png)
Intelligent Safety
Camera
.png)

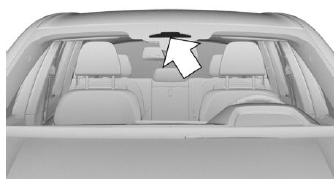

The camera is installed near the interior mirror.
Keep the windshield in front of the interior mirror clean and clear.
With radar sensor
.png)

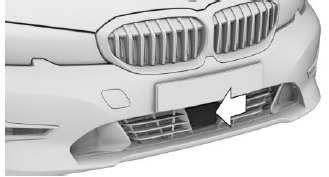

The radar sensor is located in the lower area of the front bumper.
Always keep radar sensor clean and unobstructed.
Switching on/off
Switching on automatically
The system is automatically active after every driving off.
Switching on/off manually
.png)
Press the button.
The menu for the Intelligent Safety system is displayed.
If all Intelligent Safety systems were switched off, all systems are now switched on.
"Configure INDIVIDUAL": depending on the equipment version, the Intelligent Safety systems can be individually configured. The individual settings are activated and stored for the driver profile currently used. As soon as a setting is changed on the menu, all settings of the menu are activated.
Press the button repeatedly.
The following settings are switched between: "ALL ON": all Intelligent Safety systems are switched on. Basic settings are activated for the subfunctions.
"INDIVIDUAL": the Intelligent Safety systems are switched on according to the individual settings.
Some Intelligent Safety systems cannot be individually switched off.
.png)
Press and hold this button.
All Intelligent Safety systems are switched off.
