BMW 3: Map, Destination guidance
BMW 3 Series G20 (2018-2025) Navigation, Entertainment, Communication / Navigation / Map / Map, Destination guidance
Map
Opening the map
The map can be accessed directly
with the
button on the Controller.
Overview
General information
The map can be used via iDrive.
Basic entry explanation, refer to the Owner's Manual for the vehicle.

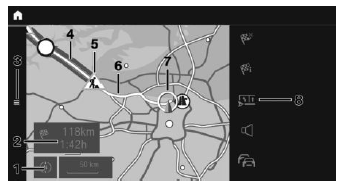

Map view
- With operation via touchscreen: change map view
- Status field
- Open destination input menu
- Route section with traffic obstruction
- Traffic sign for traffic obstruction
- Planned route
- Current location
- Function bar
Function bar
To change to the function bar, move the Controller to the right.
Terminate destination guidance.
Open destination input menu.
Route details.
Switch spoken instructions on
and off.
Real Time Traffic Information
RTTI.
Status of RTTI.
Select theme map.
Set up map.
Add intermediate destination.
Settings.
Split screen.
Status field
The following information is displayed:
- Symbol for active destination guidance.
- Time and distance to destination.
- If necessary, time delay due to traffic obstructions.
Traffic obstructions
When traffic bulletins are received, traffic obstructions can be displayed on the map.
Real Time Traffic Information RTTI.
